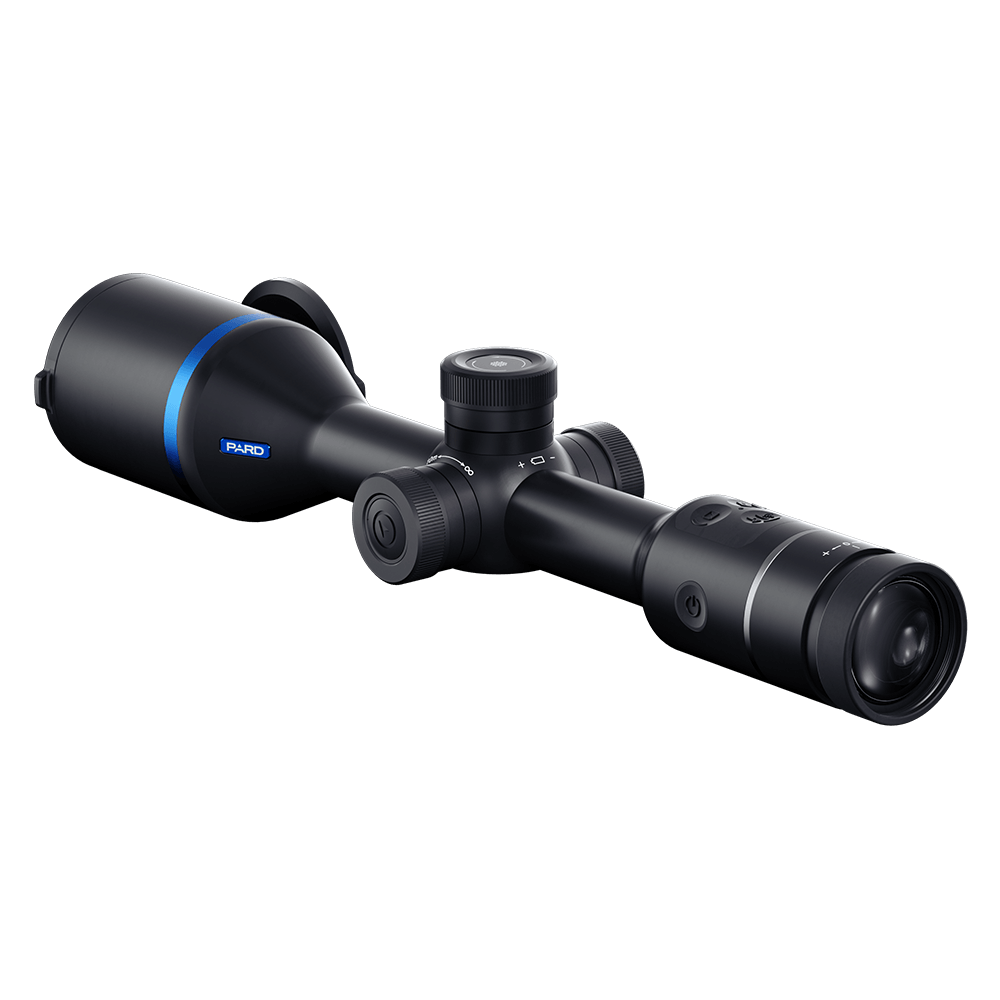

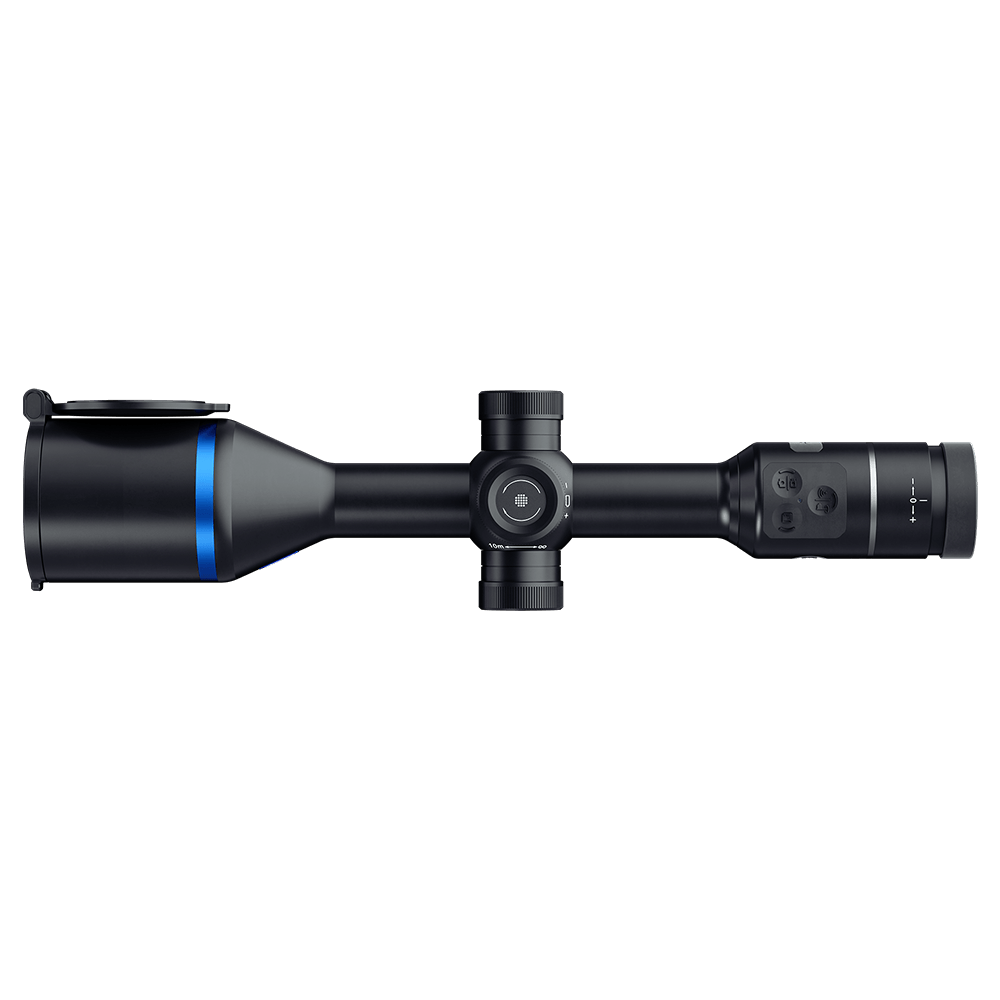

Pantera eX 640 Thermal Imaging Scope

Name: Pantera eX 640 Thermal Imaging Scope
SKU: 57873
Availability: InStock

Rp59,000,000

Lensa

Sensor

LRF (Laser Range Finder)

Hapus

Informasi Tambahan

Deskripsi

Model		Pantera eX 640-50 LRF
Classification		Thermal Imaging Scope
Sensor
Type		Uncooled VOx(vanadium oxide)
Resolution(px)		640*512
Pixel Size(µm)		12*12
NETD		≤14mK（0.014℃）
Frame Rate(Hz)		50
Detection Distance(m)		2600
Optics
Objective Lens(mm)		50
Optical Magnification(x)		3.7
Digital Zoom(x)		2/4/6/8
Field of view (HxV)	Horizontal	7°
	Vertical	7°
	Diagonal	11.2°
Field of view (m @100m)	Horizontal	12.3
	Vertical	12.3
Eye Relief(mm)		60
Diopter Adjustment(D)		-5~+3
Display
Type		OLED
Resolution(px)		2560*2560
Reticle Style		6
Reticle Color		Red/White/Yellow/Green
Scene Mode		City/Rain/Forest
Image Mode		WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px)		1024*768
Photo Format		.JPG
Video Resolution(px)		1280*1280
Video Format		.mp4
Storage		Micro SD card (Max. 128GB)
Image Engine		Pard IREA
Main function
LRF Detection Range(m/yds)		1000
Ballastic Caculator		Yes
PIP		Yes
Hot Track		Yes
Gyroscope		Yes
Recoil-activated Recording		Yes
Loop Recording		Yes
E-compass		Yes
Shutter		Mechanical shutter
Firmware Upgrade		Yes
Connections
USB Tpye-C		Yes
HDMI Output		Yes
WiFi		Yes
Supported Apps		PardVision2
Power Supply
Battery Type		Lithium Ion removable 186501 + built-in 217001
Output Voltage(V)		3.7
Operating Time(h)		≤8
External Power Supply		USB Type-C
Environmental characteristic
Protective Class		IP67
Operating Temp		-30 ~ +55 / -22 ~ +131
Recoil Resistance(J)		6000
Material
Housing		Aluminum Alloy
Objective Lens		All-glass multi-coated lens
Measurement
Product Dimension(L * W * H, mm)		3708872
N.W/pcs(with battery, g)		1087
