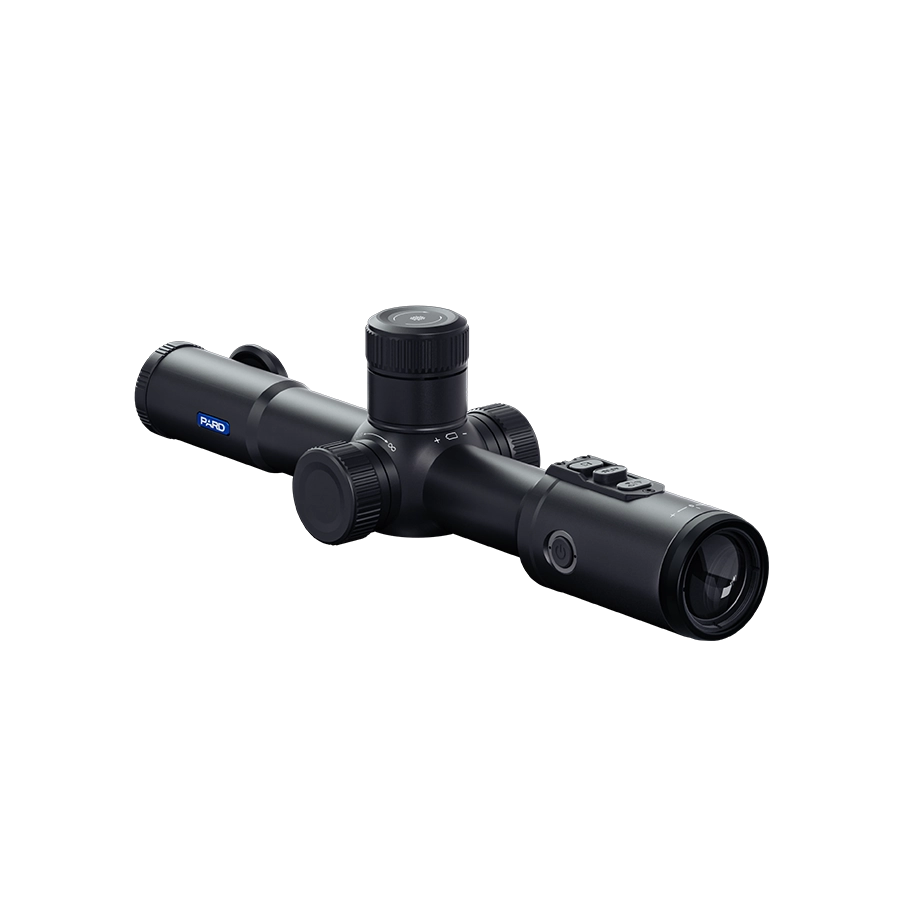

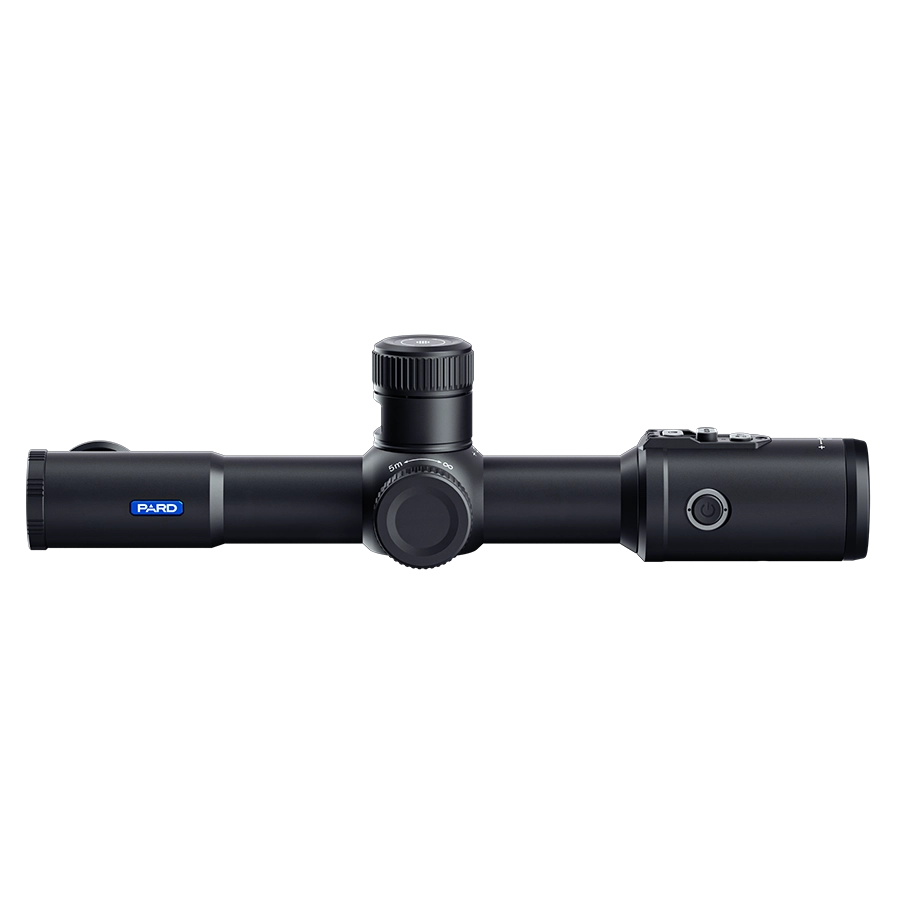

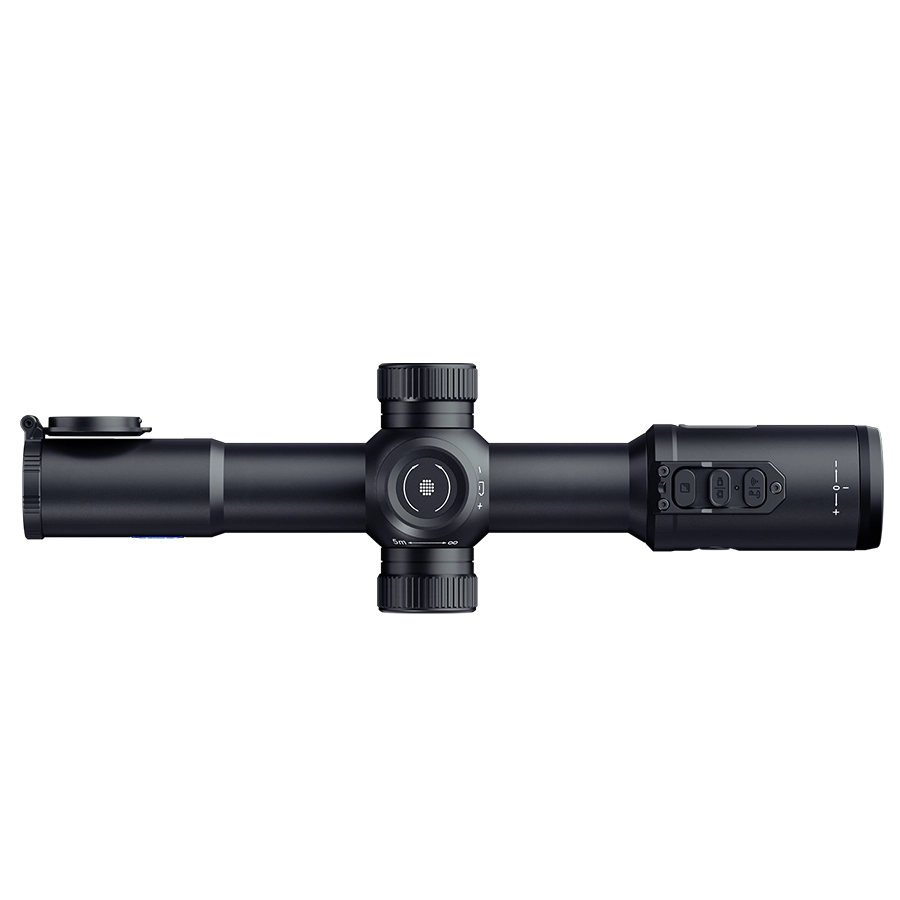

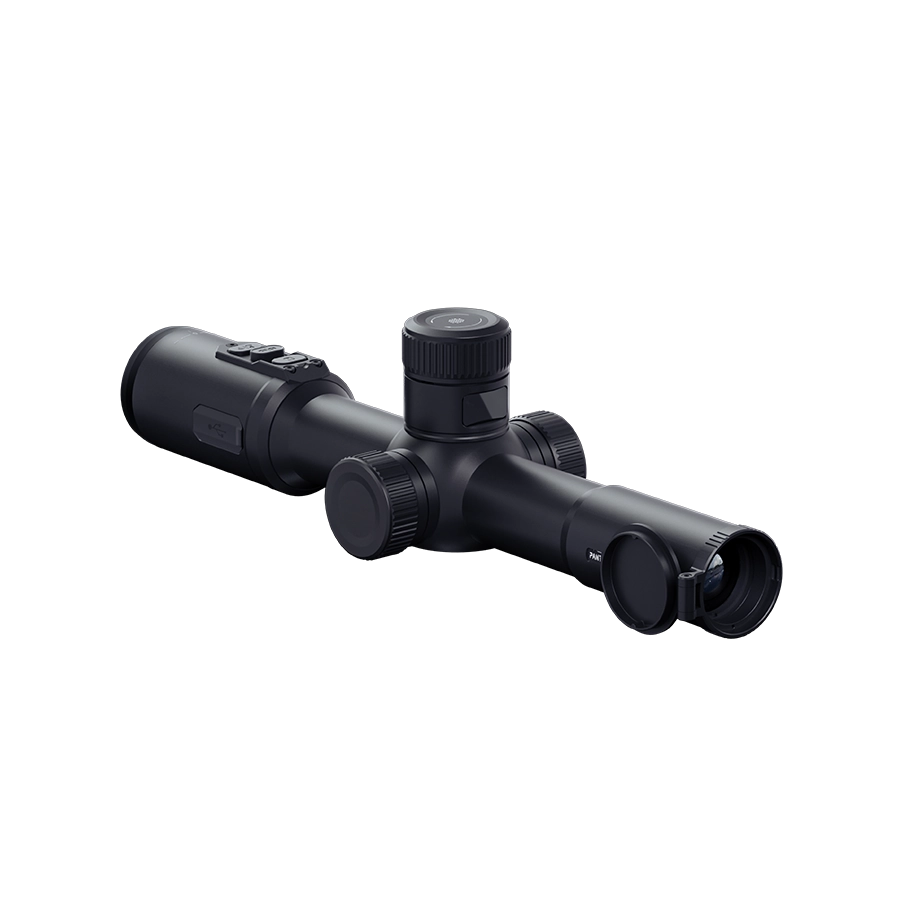

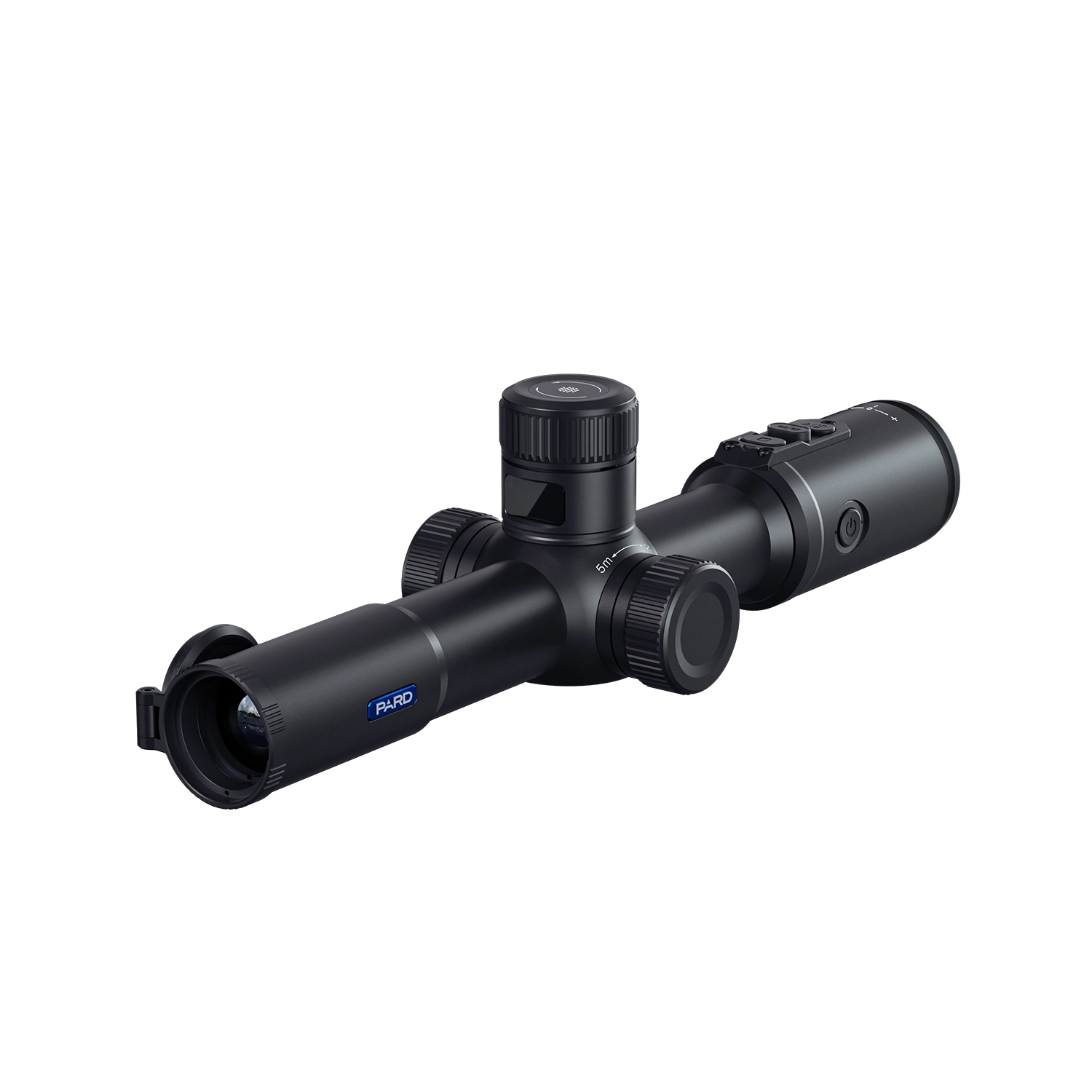

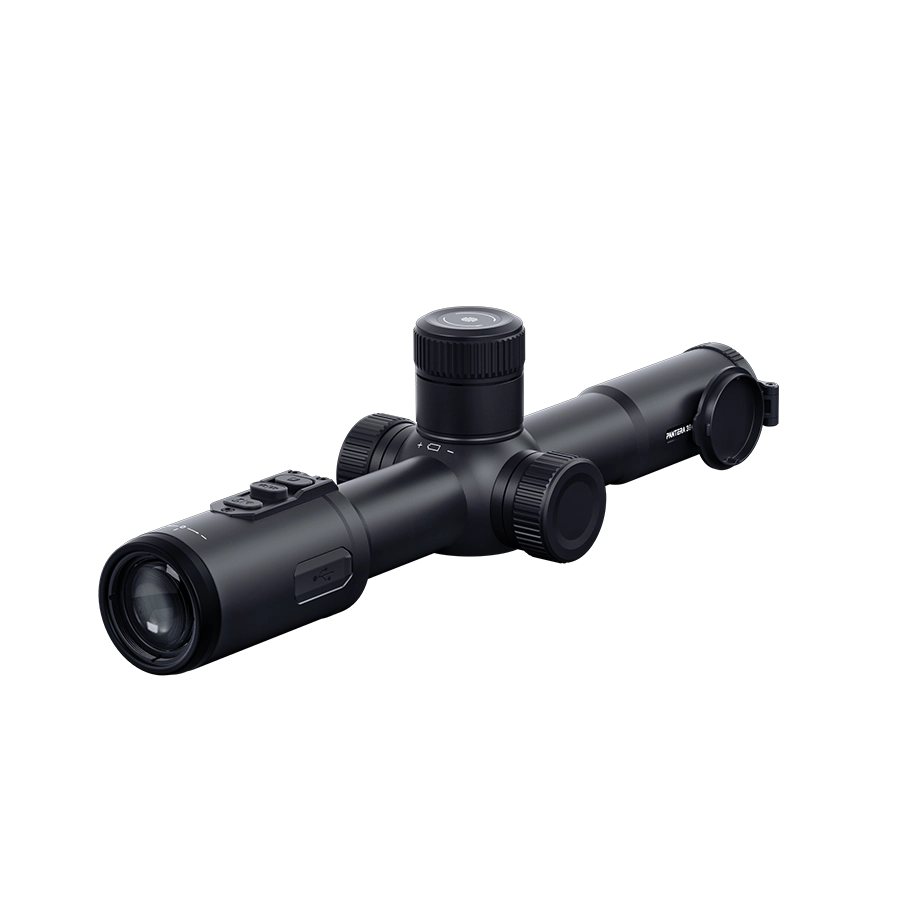

Pantera 384 Mini Thermal Imaging Scope

Name: Pantera 384 Mini Thermal Imaging Scope
SKU: 58338
Availability: InStock

Rentang harga: Rp25,900,000 hingga Rp27,900,000

Lensa

Sensor

LRF (Laser Range Finder)

Hapus

Informasi Tambahan

Deskripsi

Model		Pantera 384 Mini
Classification		Thermal Imaging Scope
Sensor
Type		Uncooled VOx(vanadium oxide)
Resolution(px)		384*288
Pixel Size(µm)		12
NETD		≤15mK
Frame Rate(Hz)		50
Detection Distance(m)		1200
Optics
Objective Lens(mm)		25/35
Optical Magnification(x)		2.4/3.4
Digital Zoom(x)		2/4/6/8
Field of view (HxV)	Horizontal	10.5°/7.5°
	Vertical	7.9°/5.7°
	Diagonal	13.1°/9.4°
Field of view (m @100m)	Horizontal	18.4/13.2
	Vertical	13.8/9.9
Focus Range		5m-∞
Eye Relief(mm)		50
Diopter Adjustment(D)		-5~+5
Display
Type		OLED
Resolution(px)		1920*1080
Reticle Style		6
Reticle Color		Red/White/Yellow/Green
Scene Mode		City/Rain/Forest
Image Mode		WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px)		1920*1080
Photo Format		.JPG
Video Resolution(px)		1920*1080
Video Format		.mp4
Storage		Micro SD Card(128GB, Max)
Main function
LRF		Yes
Ballastic Caculator		Yes
PIP		Yes
Hot Track		Yes
Gyroscope		Yes
Recoil-activated Recording		Yes
Loop Recording		Yes
E-compass		Yes
Shutter		Mechanical shutter
Firmware Upgrade		Yes
Connections
USB Tpye-C		Yes
HDMI Output		NO
WiFi		Yes
Supported Apps		PardVision2
Power Supply
Battery Type		Lithium Ion 18650*1
Output Voltage(V)		3.7
Operating Time(h)		≤5
External Power Supply		USB Type-C
Environmental characteristic
Protective Class		IP67
Operating Temp		-30 ~ +55 / -22 ~ +131
Recoil Resistance(J)		6000
Material
Housing		Aluminum Alloy
Objective Lens		All-glass multi-coated lens
Measurement
Product Dimension(L * W * H, mm)		2858272
Weight/with battery(g)		500
